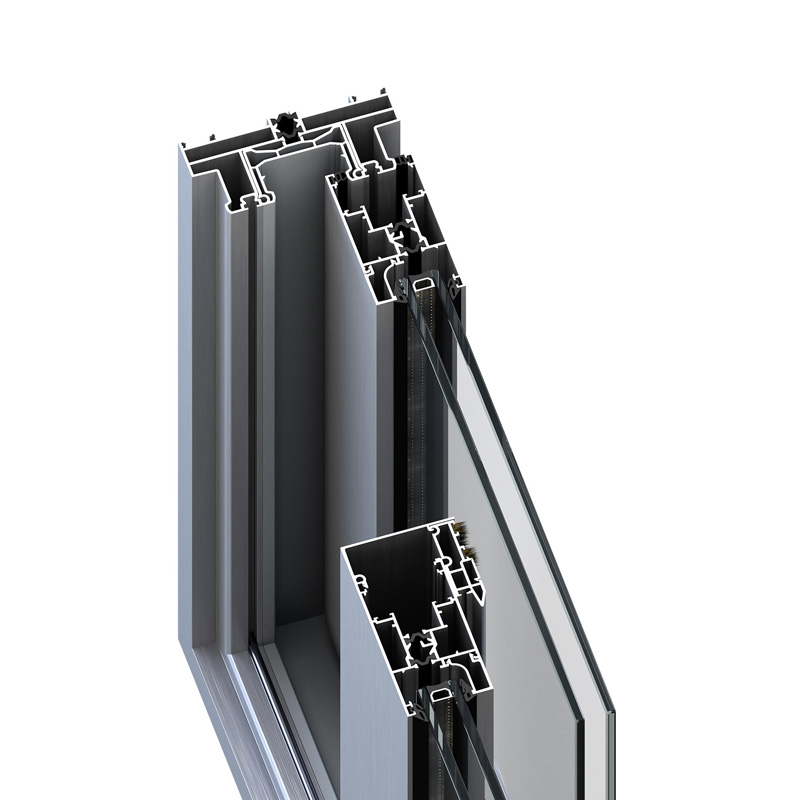

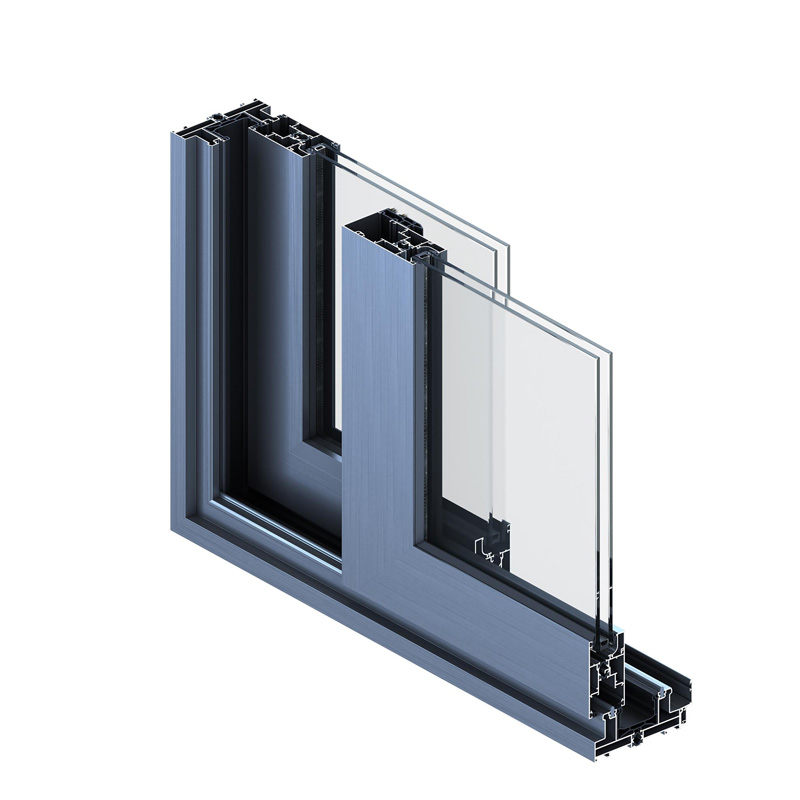

The system, which can produce wings of 3.0 m width and 3.3 m height, has a frame depth of 120 mm. The wings of the system have a carrying capacity of 400 kg and can work in harmony with the new generation joinery system DS series.

The S 50 thermally insulated lift-slide joinery system, in addition to being able to be used with all conventional mechanisms, can also be applied with espagnolette slot mechanism and different lift-slide mechanisms.

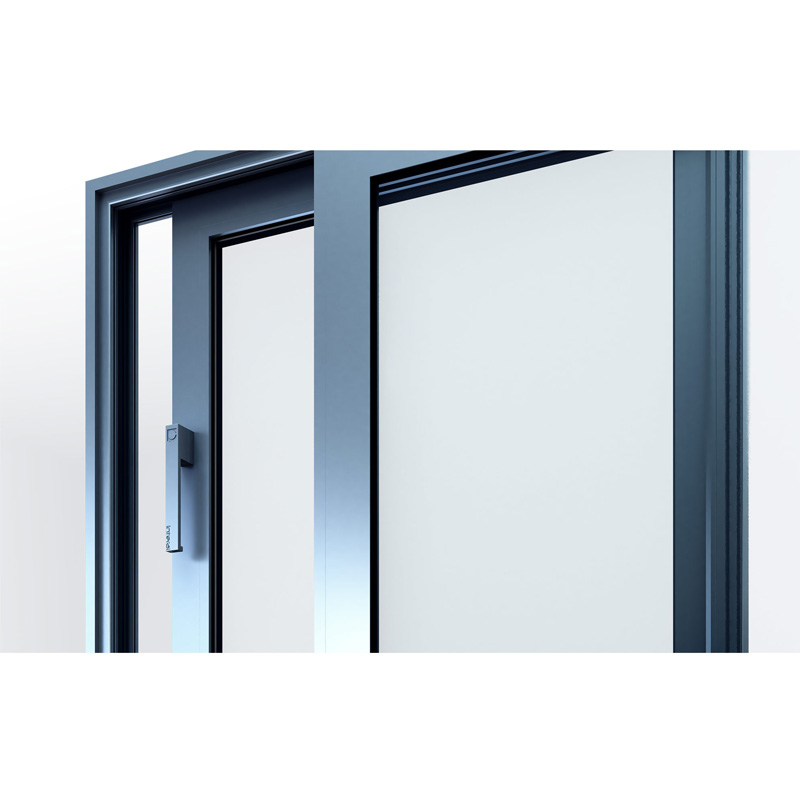

It also has a stylish appearance with the new generation Bodrum handle family.

As an option to the S 50 system, the S 50 H system offers an option that can be used especially in villa type applications.

Watertightness

E 1200 (1200 Pa)*3

Wind Resistance

B2 - 1200 Pa

Thermal Transmittance

Uw: ≤ 2.58 W/m2K / Ug: ≤ 1.4 W/m2K

Air Permeability
Class 4 (600 Pa)
