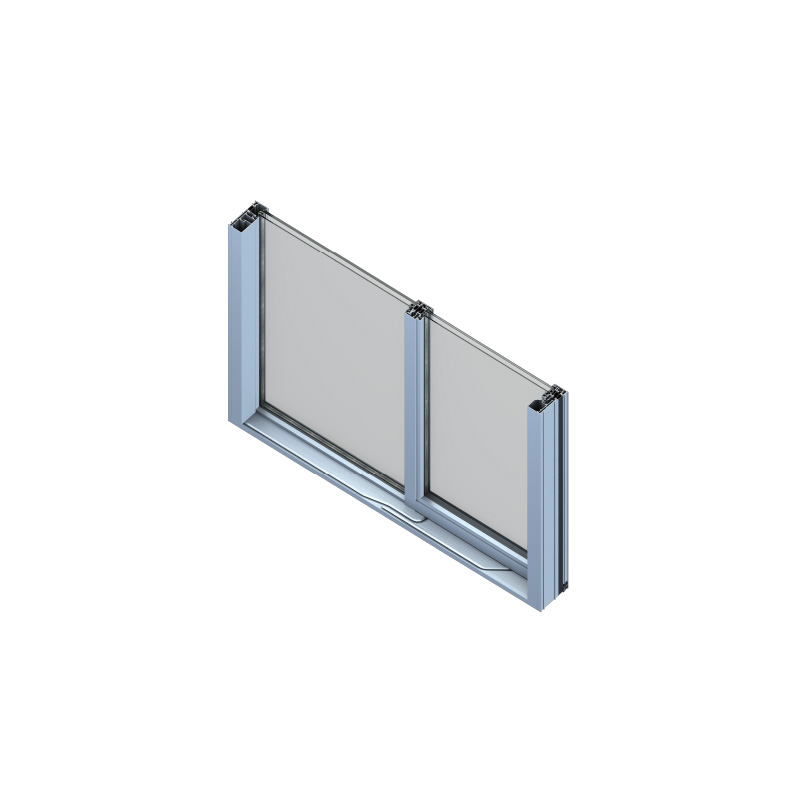

Our new tilt-and-slide Parallel Sliding System S 90, which provides an aesthetic appearance with its special accessory design, stands out with its low aluminum consumption and low labor cost as well as its high thermal insulation performance.

Our new tilt-and-slide parallel sliding system S 90, which provides an aesthetic appearance with its special accessory design, stands out with its low aluminum consumption and low labor cost as well as its high performance compared to its peers.

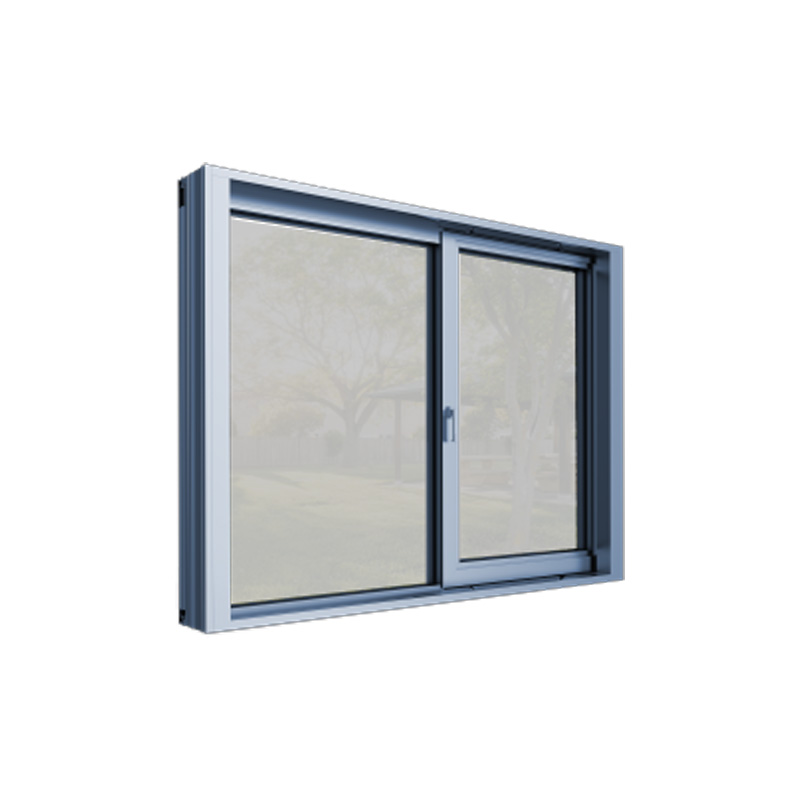

The S 90 system, when closed, looks like joinery and thanks to its special accessories, it functions as a sliding with a movable wing that slides on the fixed wing. In the system where environmental locking is possible, the fixed side can also be used as a double-axis opening wing, especially for cleaning and safe ventilation purposes.

79 mm seam width

82 mm wing depth

170 mm frame depth

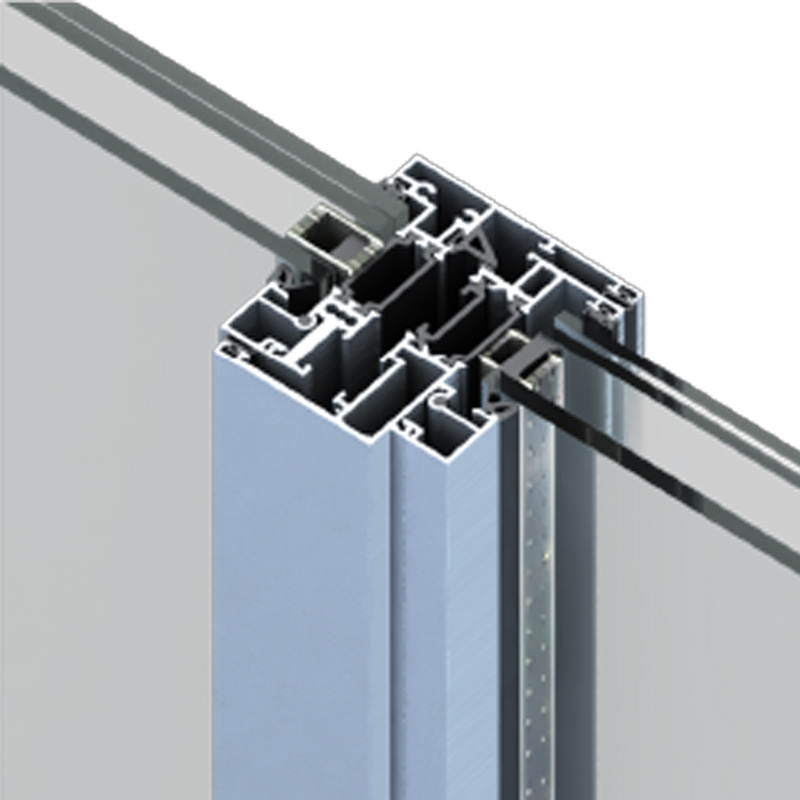

32 and 34 mm thermal thermal barrier

Project-specific reinforcement profile options

17-46 mm glazing capability

4 different opening typologies

High water performance with stream detail

Watertightness

9A

Wind Resistance

Deflection(f) < L/200

Heat Transfer Coefficient

4.59 W/m2K

Air Permeability

Class 4
